Combination protection device TD-2D-V for VDSL systems 2 | | 125 | 180 | Terminal

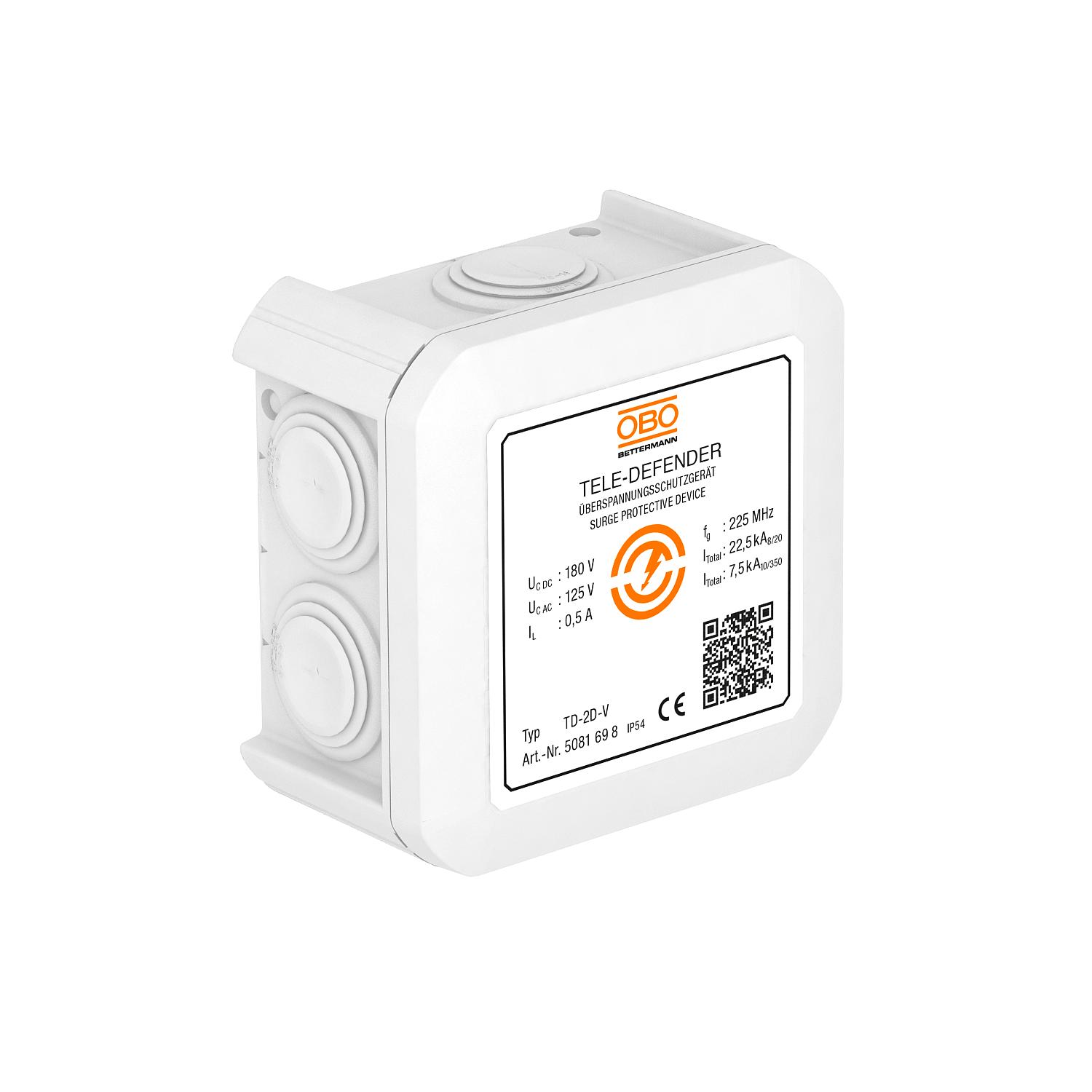

Combination protection device TD-2D-V for VDSL systems

Item no. 5081698 | EAN 4012196427444

Item no. / Types	5081698 / TD-2D-V

Number of poles	2

Maximum continuous voltage AC	125 V

Maximum continuous voltage DC	180 V

Plug-in system	Terminal

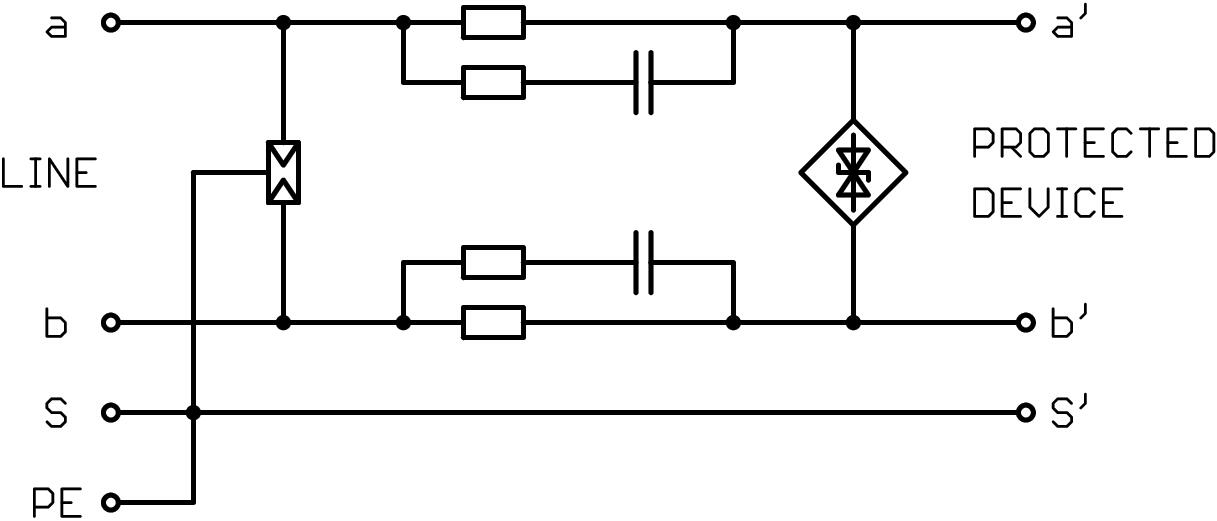

Product description

Product description

Data cable protection device for telecommunications equipment

• Low protection level at a high current load

• "Push-in" clamps for quick installation

• Bandwidth-optimised for secure transmission up to 225 MHz

• Surface mounting

Application: Ideal for all DSL systems, IP connections, ISDN or analogue telecommunications

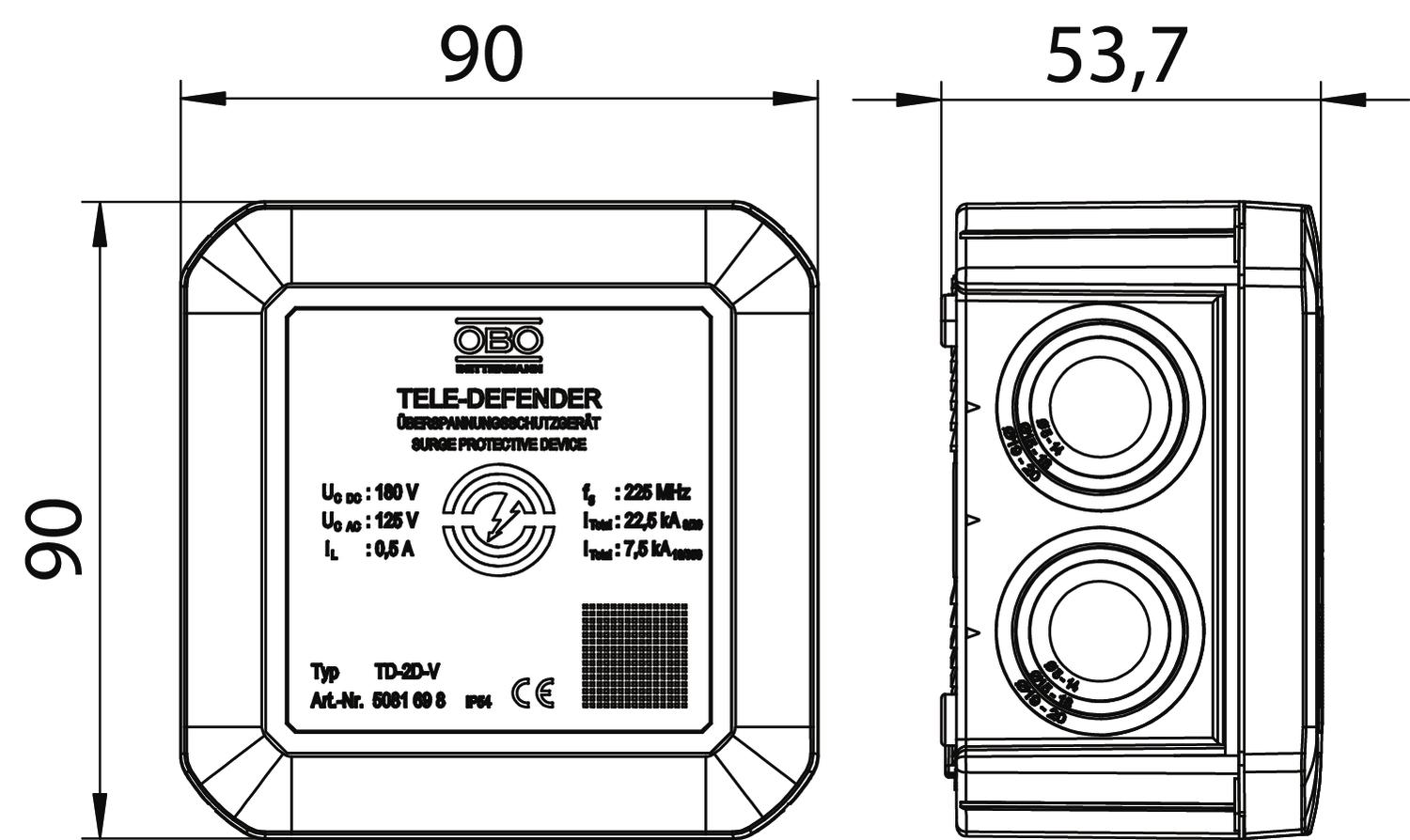

Technical data

Technical data

Arrestor monitoring	no
Cable type for surge protection devices	Telecommunications line
Capacity (wire-earth)	<20 pF
Capacity (wire-wire)	<10 pF
Colour	White
Connection cross-section, flexible, max.	1 mm²
Connection cross-section, flexible, min.	0,14 mm²
Connection cross-section, multi-wire, max.	1 mm²
Connection cross-section, multi-wire, min.	0,14 mm²
Connection cross-section, rigid, max.	1,5 mm²
Connection cross-section, rigid, min.	0,08 mm²
Cut-off frequency	225 MHz
Dimension	180V
Explosion-tested version	no
Impulse durability wire-earth	C2: 15 kV / 7,5 kA (8/20µs)
Impulse durability wire-wire	C2: 15 kV / 7,5 kA (8/20µs)
Insertion loss	≤3 dB
Insulation resistance	>10 MΩ
Kategorie	Type 1+2+3 / D1+C2+C1
Lightning impulse current	2,5 kA
Lightning protection zone LPZ	0→3

Material	Plastic
Maximum continuous voltage AC	125 V
Maximum continuous voltage DC	180 V
Nominal load current AC	0,35 A
Nominal load current DC	0,5 A
Number of poles	2
Permitted temperature range, max.	80 °C
Permitted temperature range, min.	-40 °C
Plug-in system	Terminal
Protection level wire-earth	<600 V
Protection level wire-wire	<350 V
Protection rating	IP54
Screening	Direct
Series resistance per wire	2,2 Ω ± 5 %
Shielding connection available	yes
Signalling on device	Without
SPD to IEC 61643-21	Class I+II+III / D1+C2+C1
Telecommunications contact	no
Testing standard	IEC 61643-21
Total discharge current (10/350)	D1: 7,5 kA
Total discharge current (8/20)	22,5 kA
