Collision guard for industrial pole
Item no. 6290422 | EAN 4012196191505
- Product description
-
Product descriptionCollision guard as mechanical protection of the ISS industrial pole in the bottom area. The scope of delivery comprises of two U-shaped protection profiles made from 3 mm sheet steel and eight fastening screws with slot nuts to install on the pole profile.
-
- Technical data
-
Technical data

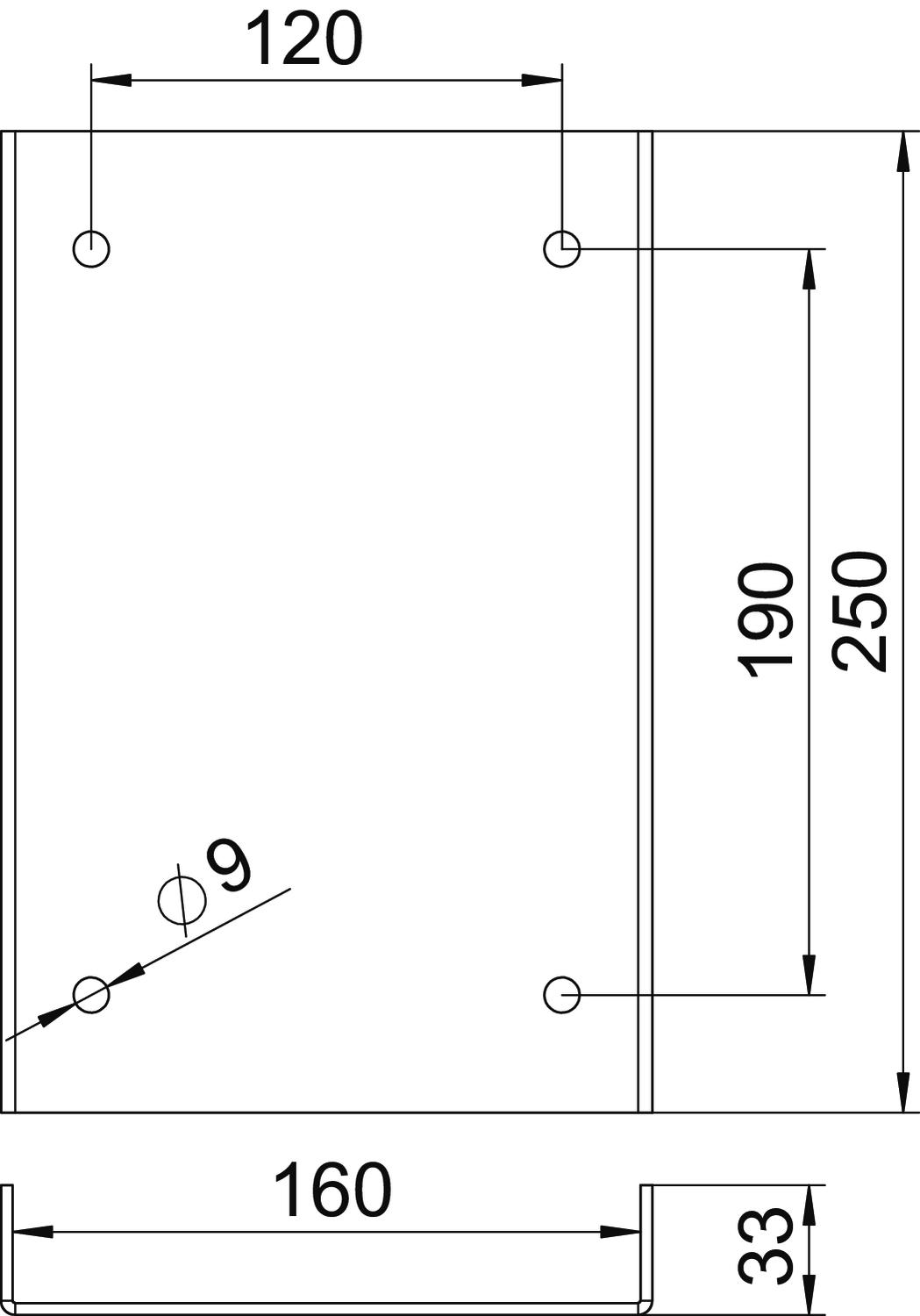

Colour White aluminium; RAL 9006 Dimension 250x166x33mm Halogen-free yes Height 33 mm Length 250 mm Material Steel Permitted temperature range, max. 60 °C Permitted temperature range, min. -25 °C Protection rating IP30 Protection rating IK code IK10 Type of accessory Arrival protection Width 166 mm - All types
- Downloads
-
Data sheet ISS160160AS WA / 6290422 , 0.19MB , pdfCatalogue Installation systems , 28.45MB , pdfEU declaration of conformity ISS160160AS WA / 6290422 , 0.13MB , pdfUK Declaration of Conformity ISS160160AS WA / 6290422 , 0.14MB , pdfLabel approval VDE symbol approval, service pole systems , 0.22MB , pdfMounting instructions Mounting instructions, ISS160160 bracket for ISS-I , 4.01MB , pdfMounting instructions Mounting instructions, ISS-I , 4.01MB , pdf
