Note: This article is discontinued. You can find the current article here: 1186769 / Clamp clip 2056 U-foot, 1-fold, plastic pressure sleeve, FT

Clamp clip, single, FT plastic pressure trough

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

Suitable for all C profile rails with slot width 18 mm and 22 mm.

Polypropylene pressure trough, halogen-free, colour light grey RAL 7035.

Technical data

Clamping range D, max.	70 mm
Clamping range D, min.	64 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,273 kg CO₂e / 1 Piece

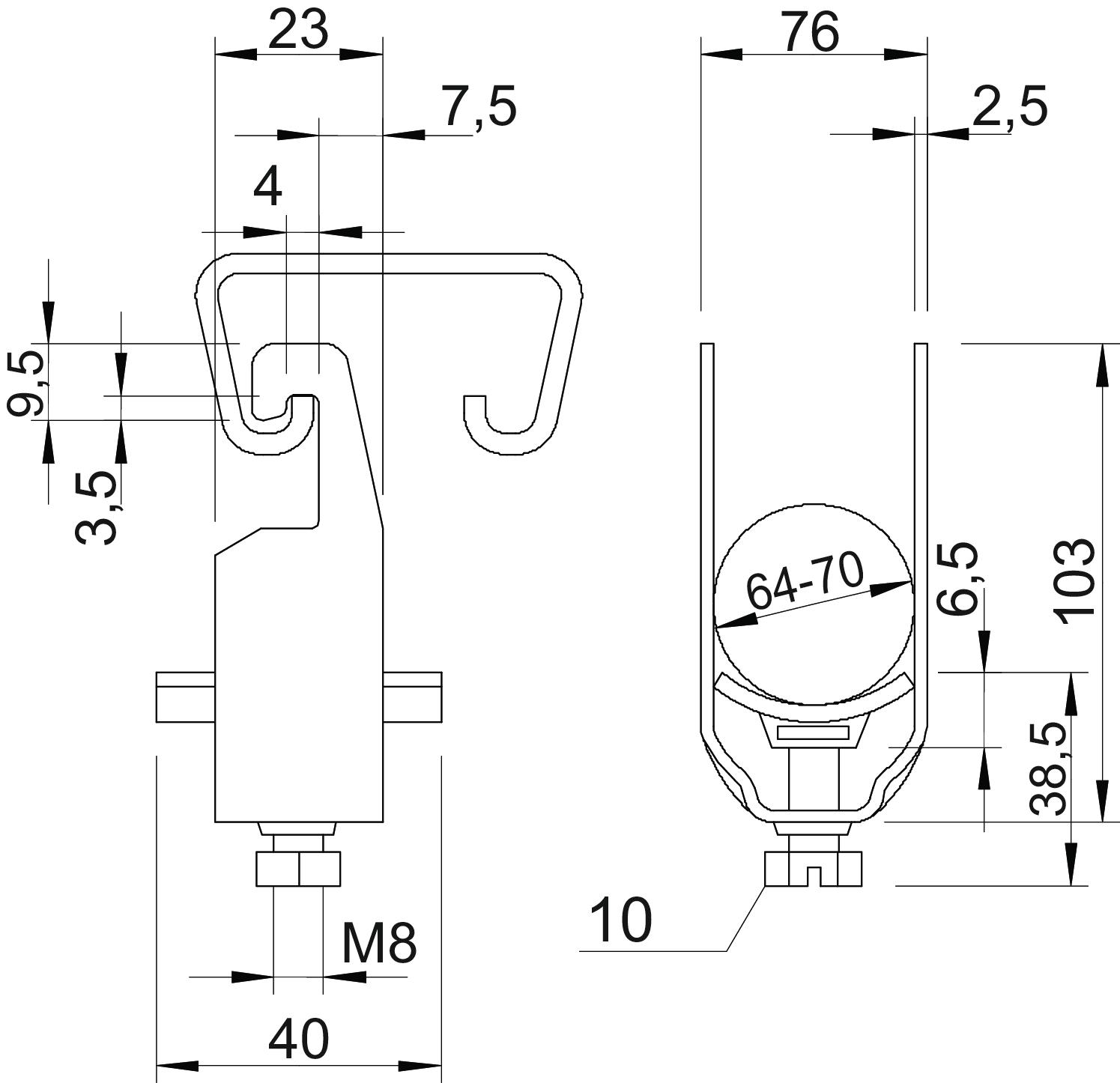

Dimension	64-70mm
Dimension A	23 mm
Dimension B	76 mm
Dimension C	40 mm
Dimension G (mm)	M8
Dimension H	103 mm
Dimension L	38,5 mm
Dimension t	2,5 mm
Dimension x	6,5 mm
for 1 cable H	103 mm
for 1 cable L	38,5
for rail with slot width (with interval), max.	22 mm

for rail with slot width (with interval), min.	18 mm
Halogen-free	yes
Impact-resistant	no
Material	Steel
Material addition	Steel
Material of trough	Plastic
Material quality of trough	Polypropylene
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Surface	Hot-dip galvanised
Surface addition	hot galvanised
With counter-trough	no
With metal trough	no
With plastic trough	yes

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
2056U 12 FT	8 mm	12 mm	3 Nm	1175122	piece	100 piece
2056U 22 FT	16 mm	22 mm	3 Nm	1175211	piece	100 piece
2056U 28 FT	22 mm	28 mm	3 Nm	1175289	piece	100 piece
2056U 40 FT	34 mm	40 mm	5 Nm	1175408	piece	100 piece
2056U 52 FT	46 mm	52 mm	5 Nm	1175521	piece	100 piece
2056U 70 FT	64 mm	70 mm	5 Nm	1175696	piece	50 piece
2056U 90 FT	82 mm	90 mm	5 Nm	1175904	piece	25 piece
