Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT 90 | 100 | 5
morepic-1 morepic-2

Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186597 | EAN 4012196850242

Product description
Product description
Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Slot width 18 mm
  • Slot width 22 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Function maintenance class E30
  • Function maintenance class E90
Technical data

Technical data

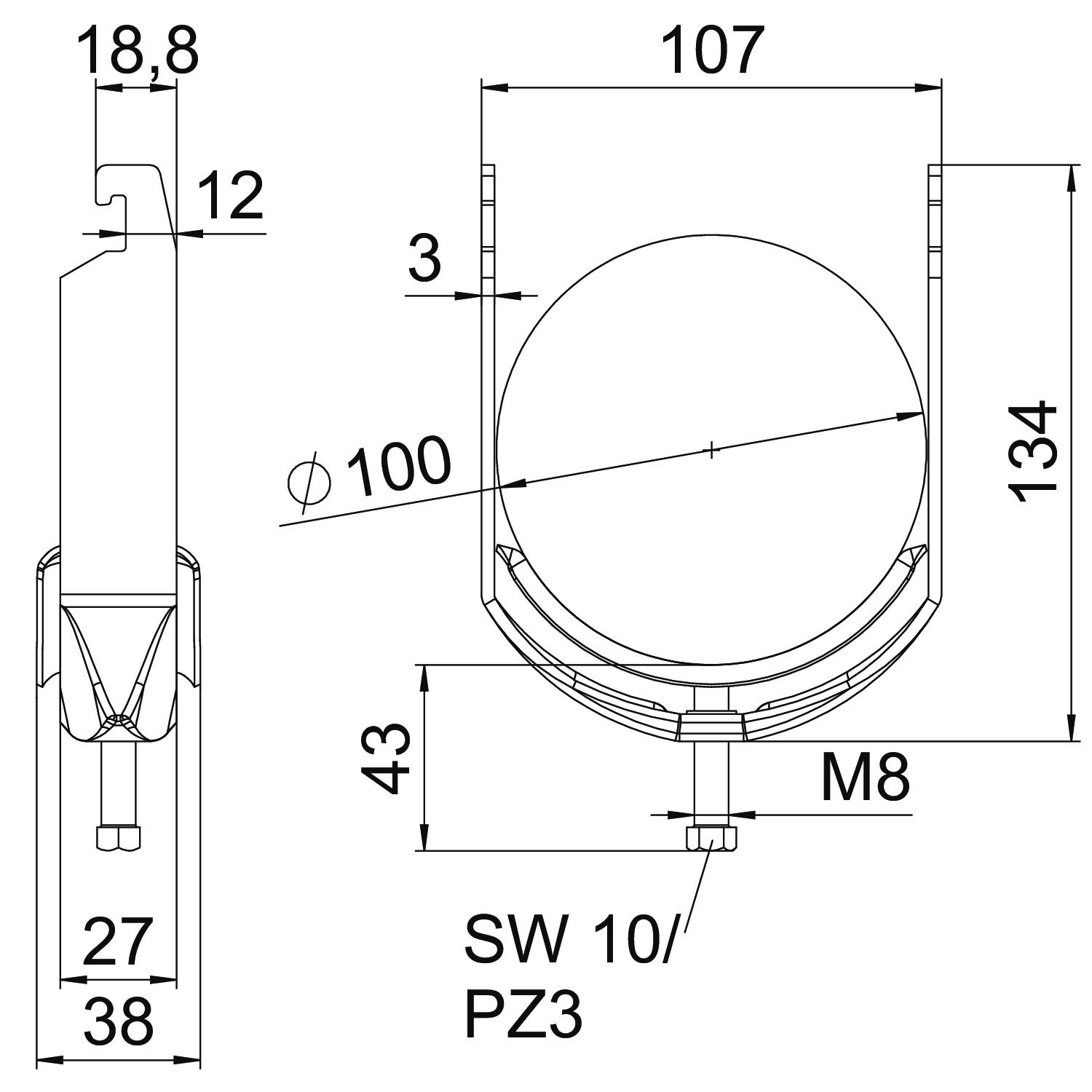

Clamping range D, max. 100 mm
Clamping range D, min. 90 mm
Dimension 90-100mm
Dimension A 27 mm
Dimension B 107 mm
Dimension C 38 mm
Dimension G (mm) M8
Dimension H 134 mm
Dimension L 43 mm
Dimension t 3 mm
For pipe diameter, max. 100 mm
For pipe diameter, min. 90 mm
for rail with slot width (with interval), max. 22 mm
for rail with slot width (with interval), min. 18 mm
Halogen-free yes
Height 134 mm
Length 27 mm
Length of external dimensions 38 mm
Maintain electrical functions yes
Material Steel
Material addition Steel
Material of trough Steel
Max. Tightening torque 5 Nm
Mounting type Profile rail
Number of cables/pipes 1
Plate thickness 3 mm
Slot width 10 mm
Surface Hot-dip galvanised
Surface addition hot galvanised
Thread M8
Width 107 mm
With counter-trough no
With metal trough yes
With plastic trough no
All types

All types

Types Clamping range D, min. Clamping range D, max. Max. Tightening torque Item no. Quantity SSU
BS-U1-M-12 FT 8 mm 12 mm 3 Nm 1186502
1 piece
BS-U1-M-16 FT 12 mm 16 mm 3 Nm 1186509
1 piece
BS-U1-M-22 FT 16 mm 22 mm 3 Nm 1186516
1 piece
BS-U1-M-28 FT 22 mm 28 mm 3 Nm 1186522
1 piece
BS-U1-M-34 FT 28 mm 34 mm 3 Nm 1186529
1 piece
BS-U1-M-40 FT 34 mm 40 mm 3 Nm 1186536
1 piece
BS-U1-M-46 FT 40 mm 46 mm 5 Nm 1186542
1 piece
BS-U1-M-52 FT 46 mm 52 mm 5 Nm 1186549
1 piece
BS-U1-M-58 FT 52 mm 58 mm 5 Nm 1186556
1 piece
BS-U1-M-64 FT 58 mm 64 mm 5 Nm 1186562
1 piece
BS-U1-M-70 FT 64 mm 70 mm 5 Nm 1186569
1 piece
BS-U1-M-76 FT 70 mm 76 mm 5 Nm 1186576
1 piece
BS-U1-M-82 FT 76 mm 82 mm 5 Nm 1186582
25 piece
BS-U1-M-90 FT 82 mm 90 mm 5 Nm 1186589
25 piece
BS-U1-M-100 FT 90 mm 100 mm 5 Nm 1186597
25 piece
Downloads

Download

Download

EU declaration of conformity BS-U1-M-100 FT / 1186597 , 0.15MB , pdf
Download

Download

Download

BS-U1-M-100 FT / 1186597
Download
