Clamp clip 2056 U-foot, 1-fold, metal pressure sleeve, FT
Item no. 1186509 | EAN 4012196849826
- Product description
-
Product description

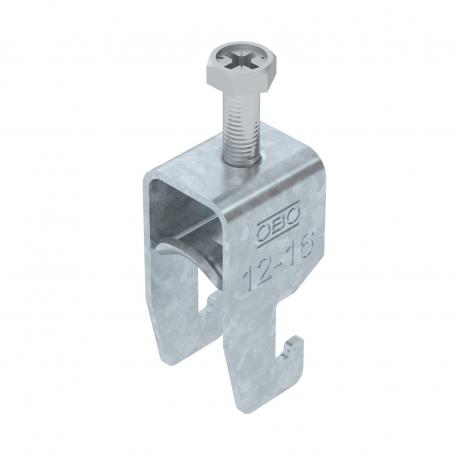

Clamp clip with U-foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For slot width 18–22 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. We recommend the use of a counter-sleeve.
-
- Technical data
-
Technical data
Clamping range D, max. 16 mm Clamping range D, min. 12 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension 12-16mm Dimension A 22,5 mm Dimension B 20 mm Dimension C 28 mm Dimension G (mm) M6 Dimension H 44 mm Dimension L 34 mm Dimension t 1,5 mm For pipe diameter, max. 16 mm For pipe diameter, min. 12 mm for rail with slot width (with interval), max. 22 mm for rail with slot width (with interval), min. 18 mm Halogen-free yes Height 44 mm Length 22,5 mm Length of external dimensions 28 mm Maintain electrical functions yes Material Steel Material addition Steel Material of trough Steel Max. Tightening torque 3 Nm Mounting type Profile rail Number of cables/pipes 1 Plate thickness 1,5 mm Slot width 10 mm Surface Hot-dip galvanised Surface addition hot galvanised Thread M6 Width 20 mm With counter-trough no With metal trough yes - All types
-
All types
- Downloads
-
Data sheet BS-U1-M-16 FT / 1186509 , 0.32MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity BS-U1-M-16 FT / 1186509 , 0.15MB , pdfREACH Declaration of conformity BS-U1-M-16 FT / 1186509 , 0.12MB , pdfRoHS Declaration of conformity BS-U1-M-16 FT / 1186509 , 0.12MB , pdfSurveyor's comments Funktionserhalt von Steigetrassen hängende Montage 3,5m bis 7m , 3.97MB , pdfMounting instructions Bügelschelle U-Fuß Metall , 2.86MB , pdf
