Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT 90 | 100 | 5

Clamp clip 2056 H-foot, 1-fold, metal pressure sleeve, FT

Item no. 1186097 | EAN 4012196848836

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Max. Tightening torque

Product description

Product description

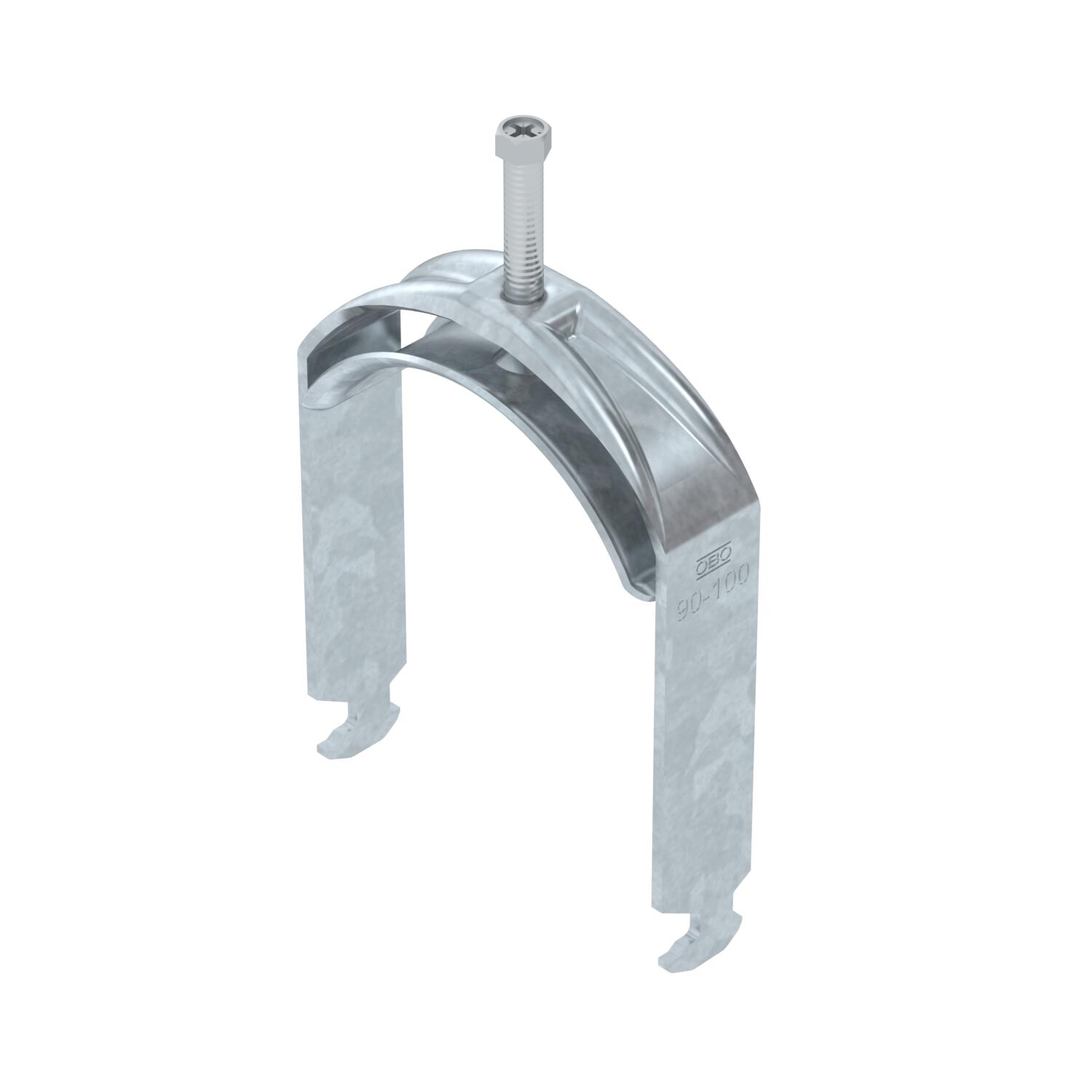

Clamp clip with hammerhead foot, metal pressure sleeve with rounded edges to protect the cable. For vertical and horizontal mounting of 1 single cable on a C-profile rail. For a slot width 16–17 mm. With 1-start screw thread on pressure sleeve, universal hexagonal screw head WAF10, with slot and cross recess. Suitable for assembly indoors and outdoors. The counter-sleeve must be ordered separately.

Technical data

Technical data

Clamping range D, max.	100 mm
Clamping range D, min.	90 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,925 kg CO₂e / 1 Meter
Dimension	90-100mm

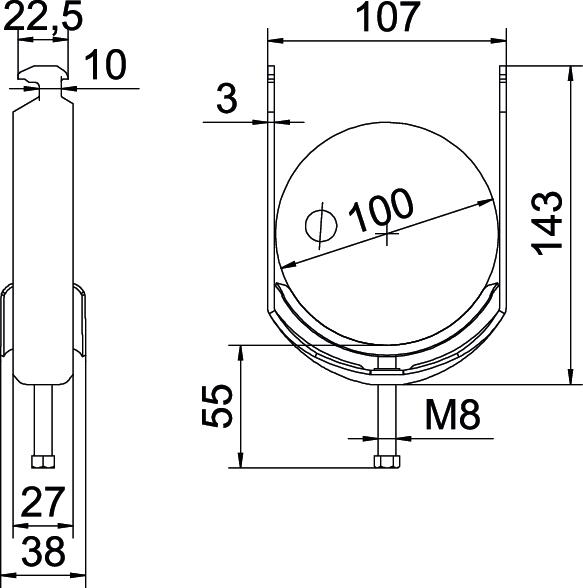

Dimension A	27 mm
Dimension B	107 mm
Dimension C	38 mm
Dimension G (mm)	M8
Dimension H	143 mm
Dimension L	55 mm
Dimension t	3 mm
For pipe diameter, max.	100 mm
For pipe diameter, min.	90 mm
for rail with slot width (with interval), max.	17 mm
for rail with slot width (with interval), min.	16 mm
Halogen-free	yes
Height	143 mm
Length	27 mm

Length of external dimensions	38 mm
Maintain electrical functions	yes
Material	Steel
Material addition	Steel
Material of trough	Steel
Max. Tightening torque	5 Nm
Mounting type	Profile rail
Number of cables/pipes	1
Plate thickness	3 mm
Slot width	10 mm
Surface	Hot-dip galvanised
Surface addition	hot galvanised
Thread	M8
Width	107 mm
With counter-trough	no
With metal trough	yes
With plastic trough	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Max. Tightening torque	Item no.	Quantity	SSU
BS-H1-M-12 FT	8 mm	12 mm	3 Nm	1186002	piece	1 piece
BS-H1-M-16 FT	12 mm	16 mm	3 Nm	1186009	piece	1 piece
BS-H1-M-22 FT	16 mm	22 mm	3 Nm	1186016	piece	1 piece
BS-H1-M-28 FT	22 mm	28 mm	3 Nm	1186022	piece	1 piece
BS-H1-M-34 FT	28 mm	34 mm	3 Nm	1186029	piece	1 piece
BS-H1-M-40 FT	34 mm	40 mm	3 Nm	1186036	piece	1 piece
BS-H1-M-46 FT	40 mm	46 mm	5 Nm	1186042	piece	1 piece
BS-H1-M-52 FT	46 mm	52 mm	5 Nm	1186049	piece	1 piece
BS-H1-M-58 FT	52 mm	58 mm	5 Nm	1186056	piece	1 piece
BS-H1-M-64 FT	58 mm	64 mm	5 Nm	1186062	piece	1 piece
BS-H1-M-70 FT	64 mm	70 mm	5 Nm	1186069	piece	1 piece
BS-H1-M-76 FT	70 mm	76 mm	5 Nm	1186076	piece	1 piece
BS-H1-M-82 FT	76 mm	82 mm	5 Nm	1186082	piece	1 piece
BS-H1-M-90 FT	82 mm	90 mm	5 Nm	1186089	piece	1 piece
BS-H1-M-100 FT	90 mm	100 mm	5 Nm	1186097	piece	1 piece
