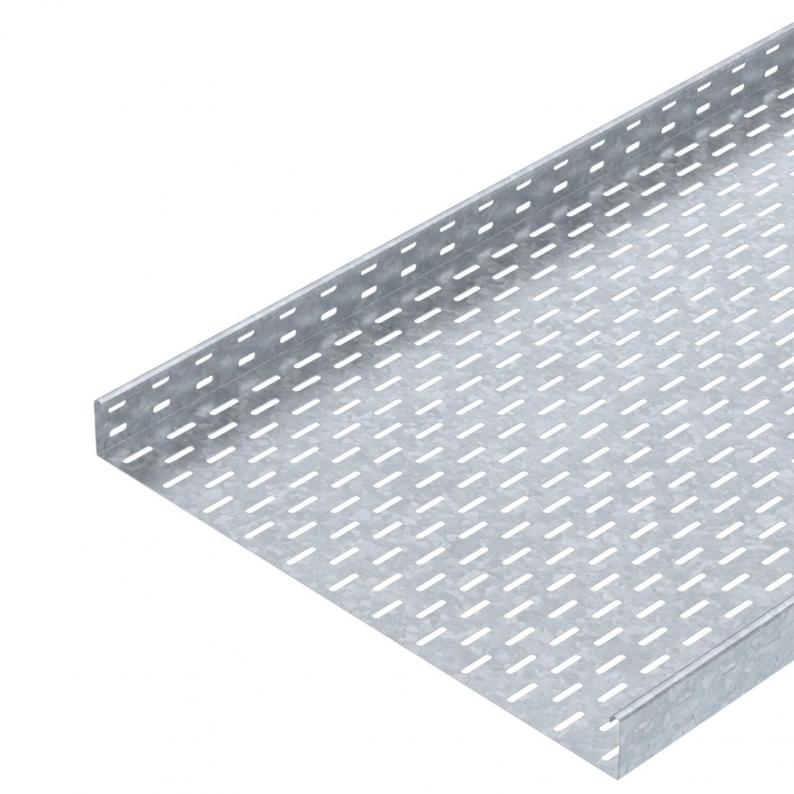

Cable tray MKS 60 FT

Item no. / Types

Length	3000 mm

Width

Plate thickness	1 mm

Maintain electrical functions	no

Material	Steel

Surface	Hot-dip galvanised

Product description

Product description

MKS 60 = Medium-duty cable tray system with a side height of 60 mm.

Magnetic shield insulation without cover 20 dB, with cover 50 dB.

Technical data

Colour	zinc
Connector version	Without connectors
CO₂ Footprint (GWP) Cradle-to-Gate	13,611 kg CO₂e / 1 Meter
Dimension	60 x 600
Dimension	60x600x3000
Dimension B	600 mm
Height	60 mm
Height	2 in
Length	3000 mm
Length	10 ft
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Maß W	600 mm
Material	Steel
Mounting perforation in base	yes
NATO hole pattern	no

Plate thickness	0,04 in
Plate thickness	1 mm
Rustproof steel, pickled	no
Side perforation	yes
Support spacing 1.5 m	1,5 kN/m
Support spacing 1.75 m	1,25 kN/m
Support spacing 2.0 m	1 kN/m
Support spacing 2.5 m	0,5 kN/m
Surface	Hot-dip galvanised
Type of connector, cable support system	Screwed
Usable cross-section	358 cm²
Usable cross-section	35800 mm²
Wide-span version	no
Width	24 in
Width	600 mm
With cover	no

Technical data

All types

Types	Length	Width	Plate thickness	Maintain electrical functions	Material	Surface	Item no.	Quantity	SSU
MKS 610 FT	3000 mm	100 mm	1 mm	no	Steel	Hot-dip galvanised	6055532	m	3 m
MKS 615 FT	3000 mm	150 mm	1 mm	no	Steel	Hot-dip galvanised	6055559	m	3 m
MKS 620 FT	3000 mm	200 mm	1 mm	no	Steel	Hot-dip galvanised	6055575	m	3 m
MKS 630 FT	3000 mm	300 mm	1 mm	no	Steel	Hot-dip galvanised	6055613	m	3 m
MKS 640 FT	3000 mm	400 mm	1 mm	no	Steel	Hot-dip galvanised	6055664	m	3 m
MKS 650 FT	3000 mm	500 mm	1 mm	no	Steel	Hot-dip galvanised	6055699	m	3 m
MKS 660 FT	3000 mm	600 mm	1 mm	no	Steel	Hot-dip galvanised	6055710	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	RLVK 60 FT	6067603	piece	10 piece
Joint plate DD	SSLB 600 DD	7070334	piece	20 piece
Cover with turn buckle FT	DRL 600 FT	6051472	m	3 m
45° bend 60 FT	RB 45 660 FT	6036142	piece	1 piece
90° bend 60 FT	RB 90 660 FT	6036602	piece	1 piece
Add-on tee 60 FT	RAA 660 FT	6042223	piece	1 piece
T piece 60 FT	RT 660 FT	6038142	piece	1 piece
Cross-over 60 FT	RK 660 FT	7027421	piece	1 piece
Cover with turn buckle DD	DRL 600 DD	6052724	m	3 m
Barrier strip 60 DD	TSG 60 DD	6062327	m	3 m
90° bend 60 FT	RB 90 660 FT	7125585	piece	1 piece
