Cable ladder SLCS 110, 3 m C30 FT
Item no. 6207314 | EAN 4012196431915
- Product description
-
Product description

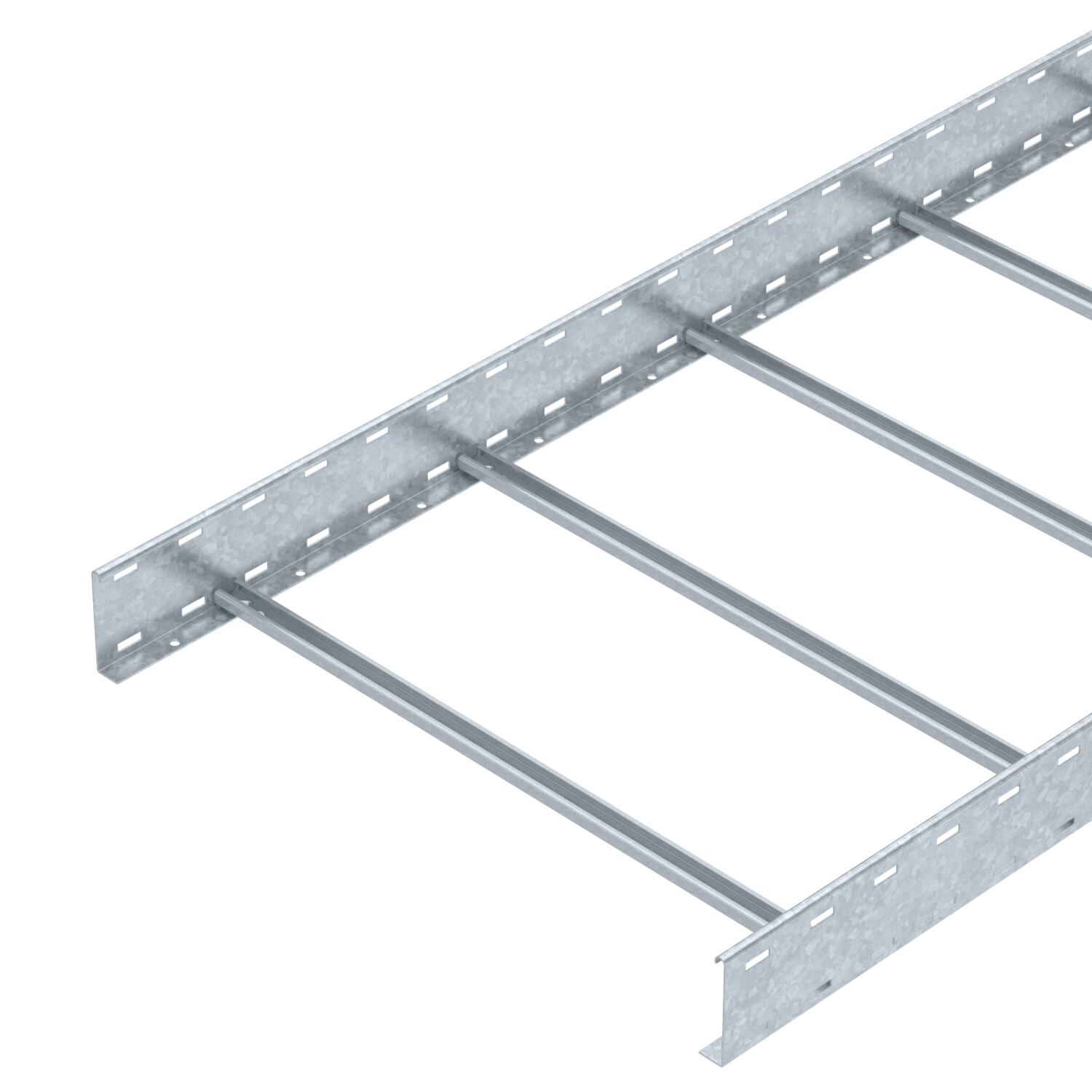

Cable ladder with 110 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data
Colour zinc CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension 110x750x3000 Dimension B 750 mm Fastening of rung Welded Height 110 mm Length 3000 mm Length 3000 ft Maintain electrical functions no Material Steel Rail thickness 2 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 2.0 m 3,5 kN/m Support spacing 3.0 m 1,9 kN/m Support spacing 4.0 m 1 kN/m Support spacing 5.0 m 0,8 kN/m Support spacing 6.0 m 0,25 kN/m Surface Hot-dip galvanised Usable cross-section 675 cm² Usable cross-section 67500 mm² Version of the rungs Profile unperforated Wide-span version no Width 750 mm Technical data

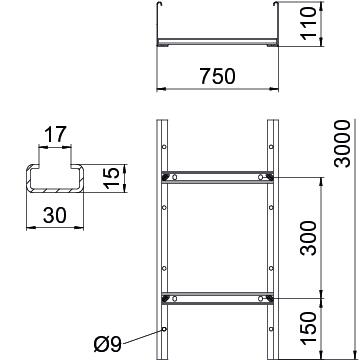

Load diagram, cable ladder, type SLCS 110
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
