Note: This article is discontinued.

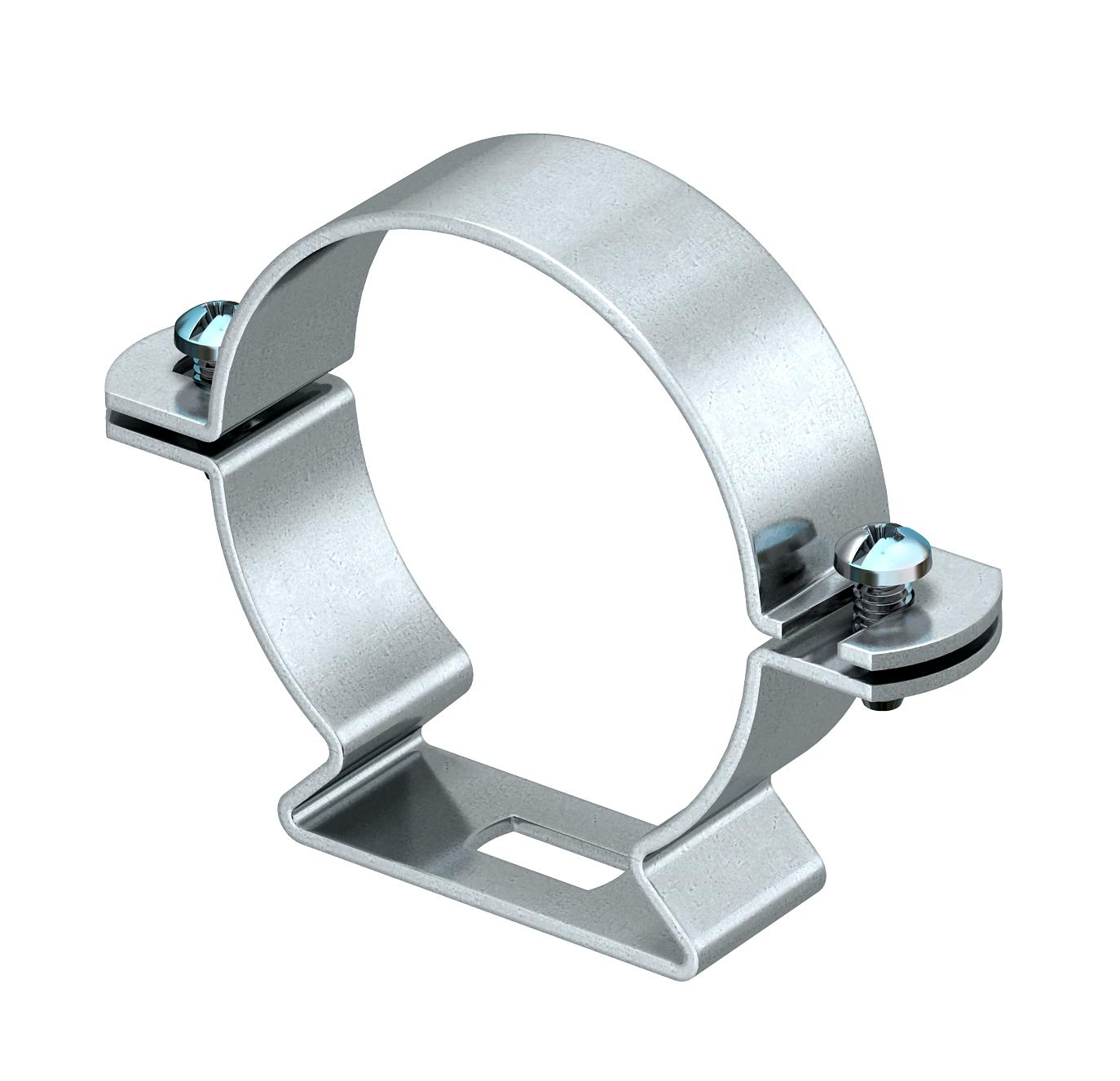

Cable and pipe spacer clip 733 FT
Item no. 1361091 | EAN 4012195029755
- Product description
-
Product description
* Size M16 is not suitable for nail device.
* Sizes M16 to PG16 not suitable for bolt-firing tool.
-
- Technical data
-
Technical data

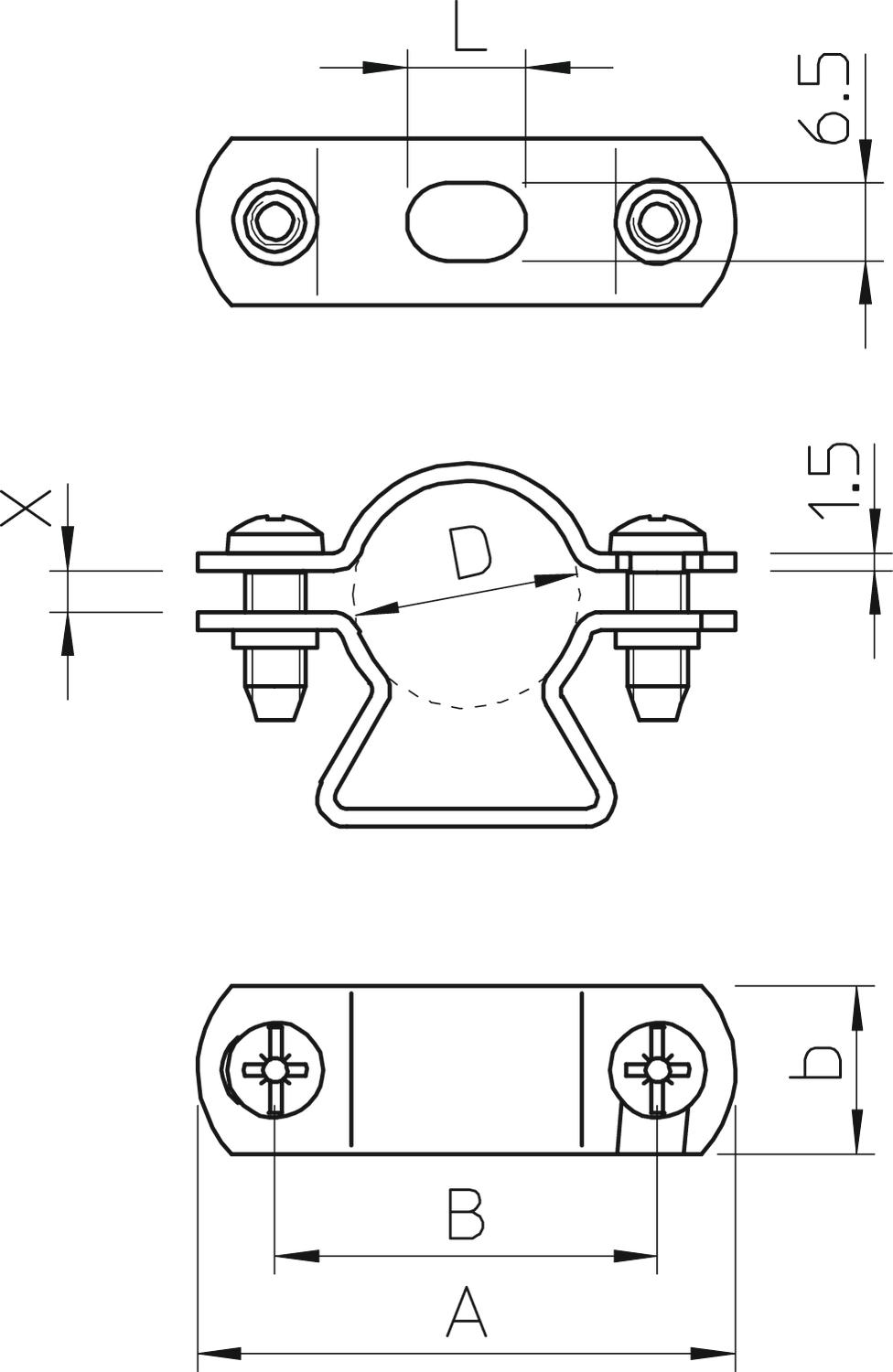

Bolt M5 x 12 Clamping range D, max. 13 mm Clamping range D, min. 11 mm CO₂ Footprint (GWP) Cradle-to-Gate 0,925 kg CO₂e / 1 Meter Dimension 11-13mm Dimension A 39 mm Dimension b 14 mm Dimension B 26 mm Dimension L 10 mm Dimension x 2,5 mm Distance to the wall yes Fastening type Screw hole Halogen-free yes Hole size 6,5 x 10 mm Length 39 mm Material Steel Material thickness 1,5 mm Number of cables/pipes 1 Plastic-covered no Size M12 Suitable in fire protection area no Surface Hot-dip galvanised UV-resistant yes Version for Closed Width 14 mm - All types
- Downloads
-
Data sheet 733 13 FT / 1361091 , 0.24MB , pdfCatalogue Fastening materials , 19.78MB , pdfDeclaration of conformity 733 13 FT / 1361091 , 0.05MB , pdfREACH Declaration of conformity 733 13 FT / 1361091 , 0.12MB , pdfRoHS Declaration of conformity 733 13 FT / 1361091 , 0.13MB , pdf
