Note: This article is discontinued.

Cable and pipe spacer clip 732 with threaded connection V4A 1 | M6 | 16.5 | 18 | Stainless steel | Bright, treated

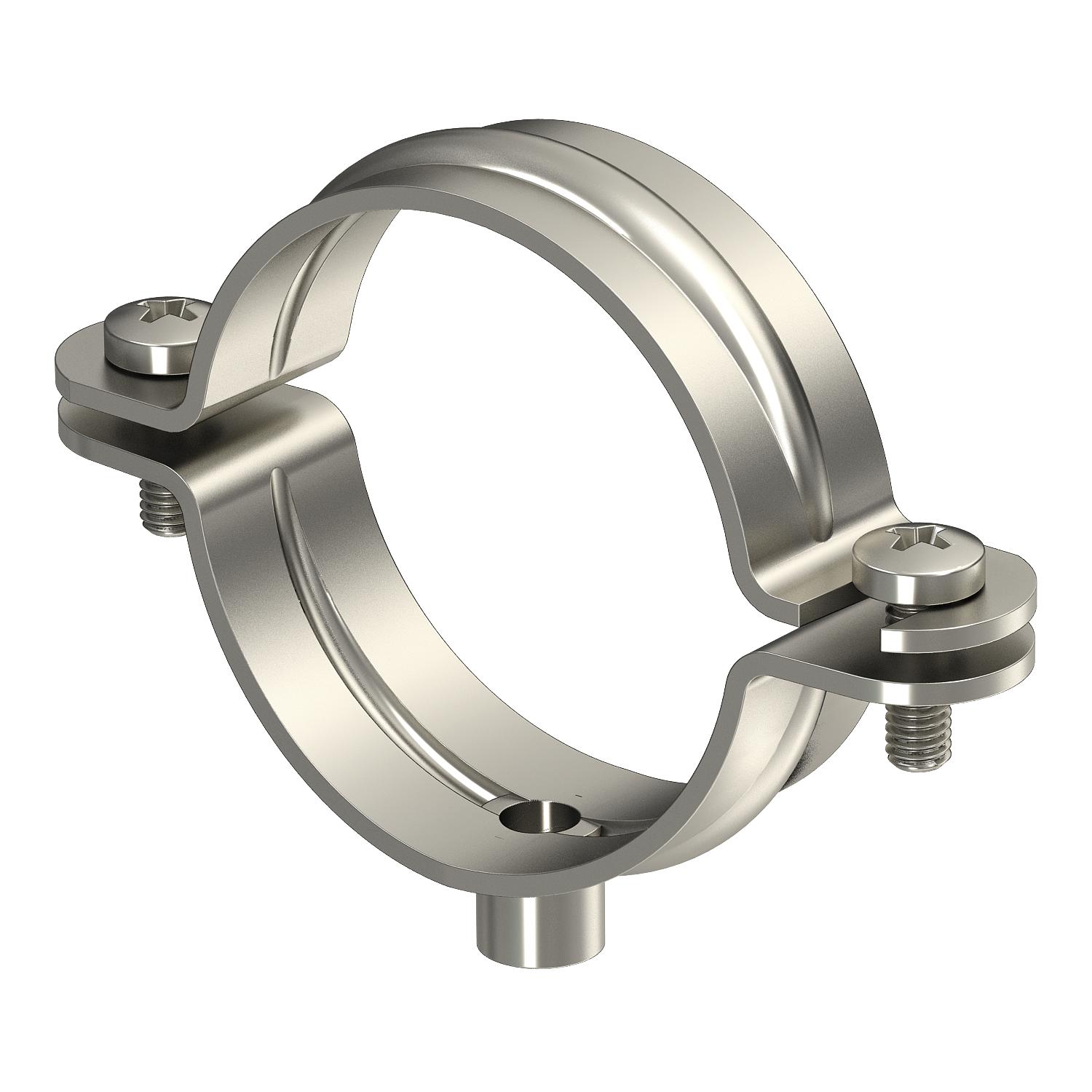

Cable and pipe spacer clip 732 with threaded connection V4A

Item no. 1360658 | EAN 4012195912446

Item no. / Types

Material thickness

Hole size	M6 mm

Clamping range D, min.

Clamping range D, max.

Material	Stainless steel

Surface	Bright, treated

Product description

Product description

Mounting with screw-in spacer clips. Spacer clips and screw-in spacer clips are available in various materials: in V2A stainless steel, in electrogalvanised, hot-dip galvanised steel or in aluminium. Fastening can be take place with bolt ties or Angler anchors and Sprint screws.
Depending on the design, the clips can be "shot" using a bolt-firing tool or nail device.

Technical data

Technical data

Bolt	M5 x 12
Clamping range D, max.	18 mm
Clamping range D, min.	16,5 mm
CO₂ Footprint (GWP) Cradle-to-Gate	0,925 kg CO₂e / 1 Meter
Dimension	16,5-18mm

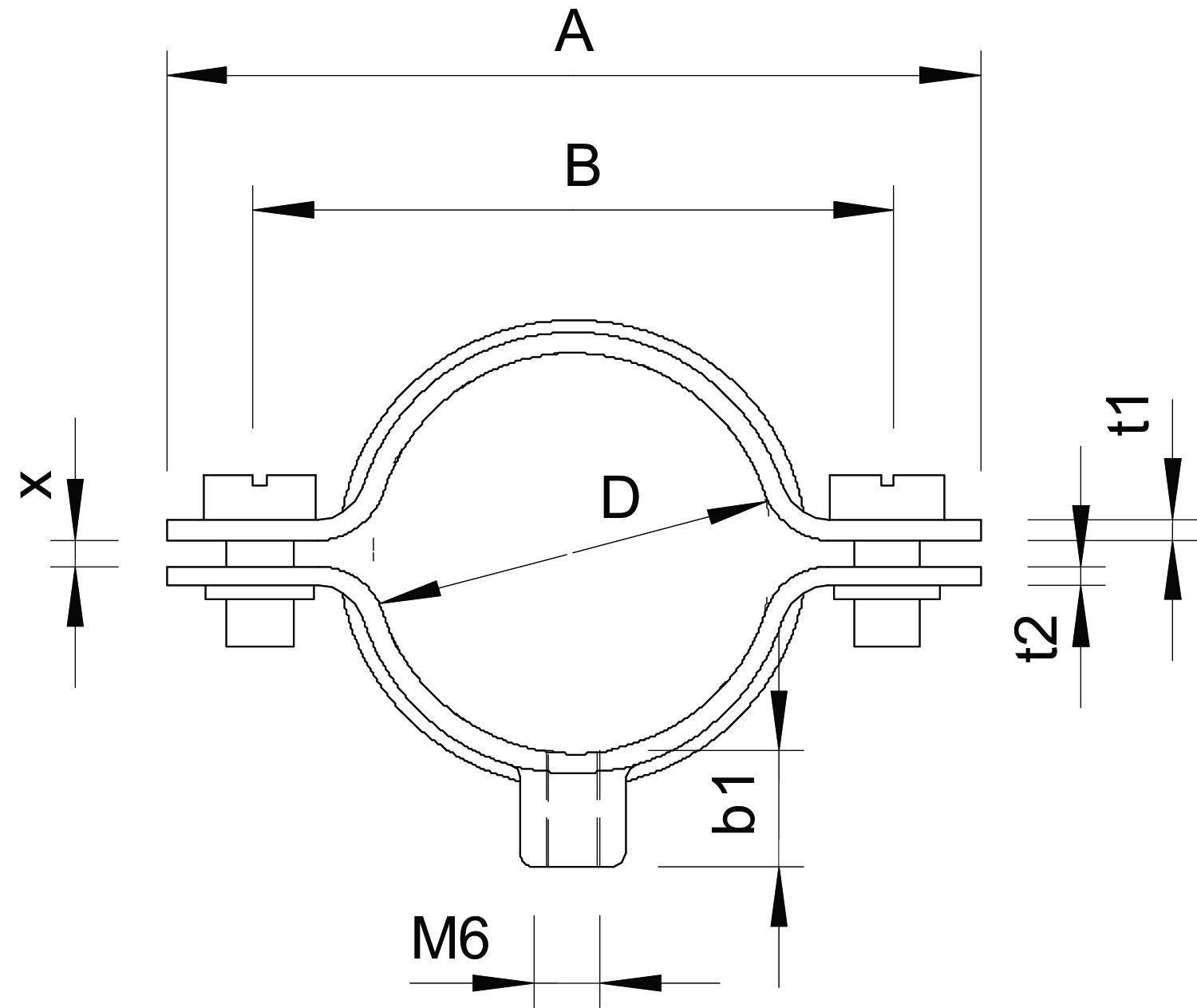

Dimension A	44 mm
Dimension B	32 mm
Dimension b1	9,8 mm
Dimension t1 (mm)	1
Dimension t2 (mm)	1,25
Dimension x	1,5 mm
Distance to the wall	yes
Fastening type	Threaded connection

Halogen-free	yes
Hole size	M6 mm
Length	44 mm
Material	Stainless steel
Material thickness	1 mm
Number of cables/pipes	1
Plastic-covered	no
Size	PG11
Suitable in fire protection area	yes
Surface	Bright, treated
UV-resistant	yes
Version for	Closed

All types

All types

Types	Material thickness	Hole size	Clamping range D, min.	Clamping range D, max.	Material	Surface	Item no.	Quantity	SSU
732 18 A4	1 mm	M6 mm	16.5 mm	18 mm	Stainless steel	Bright, treated	1360658	piece	100 piece
732 33 A4	1.5 mm	M6 mm	31 mm	33 mm	Stainless steel	Bright, treated	1360672	piece	25 piece
732 38 A4	1.5 mm	M6 mm	36 mm	38 mm	Stainless steel	Bright, treated	1360676	piece	25 piece
732 50 A4	1.5 mm	M6 mm	48 mm	50 mm	Stainless steel	Bright, treated	1360686	piece	25 piece
732 60 A4	1.5 mm	M6 mm	58 mm	60 mm	Stainless steel	Bright, treated	1360688	piece	25 piece
