Product description

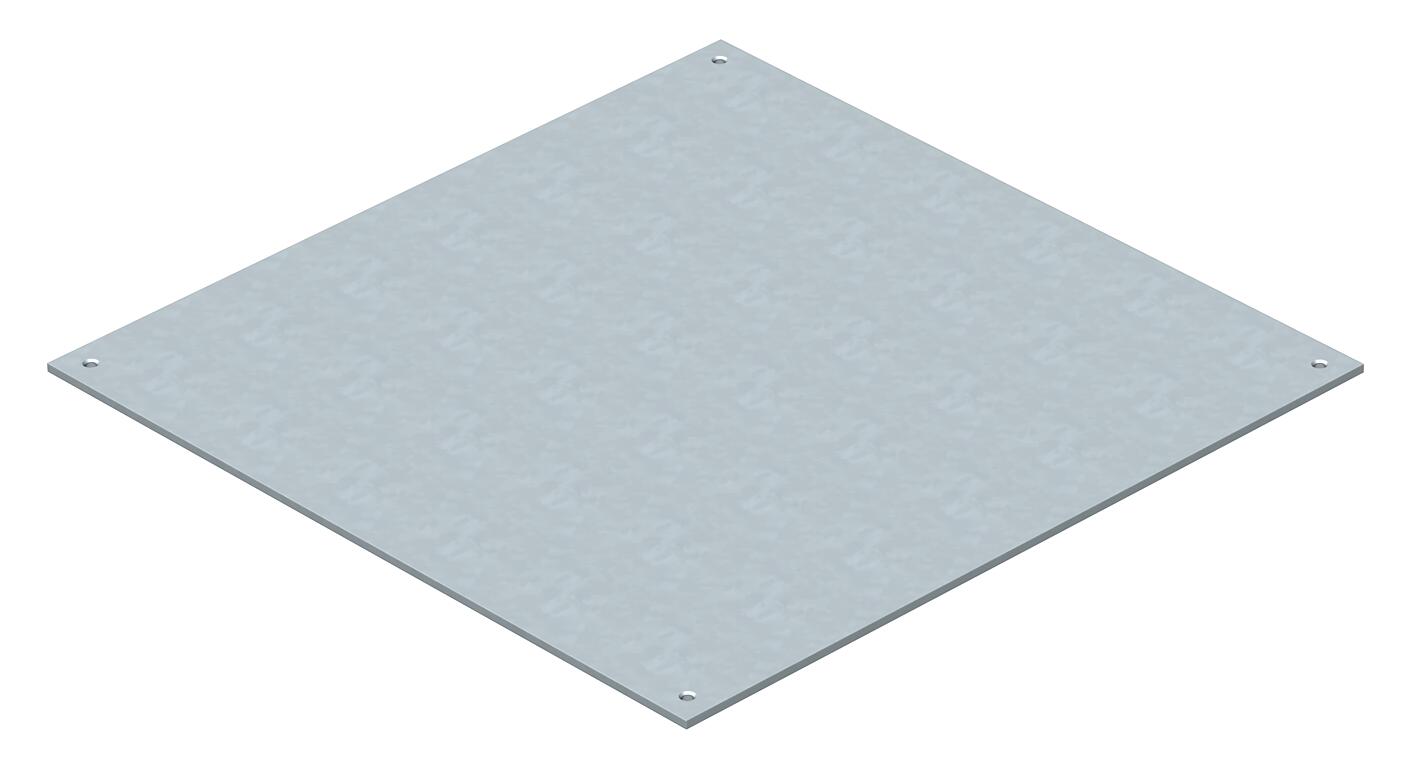

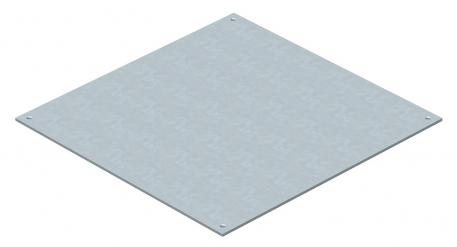

Blanking lid for frameless end cover of the underfloor junction and branch boxes of type UZD250-3/4.
-
- Technical data
-
Technical data
Dimension 282x282x4 Floor care Dry Heavy-duty version no Installation opening for on-floor tank no Material Steel Material thickness 4 mm Mounting opening Without Mounting opening cover no Seal installation option no Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts no Surface Strip galvanized Dimensions

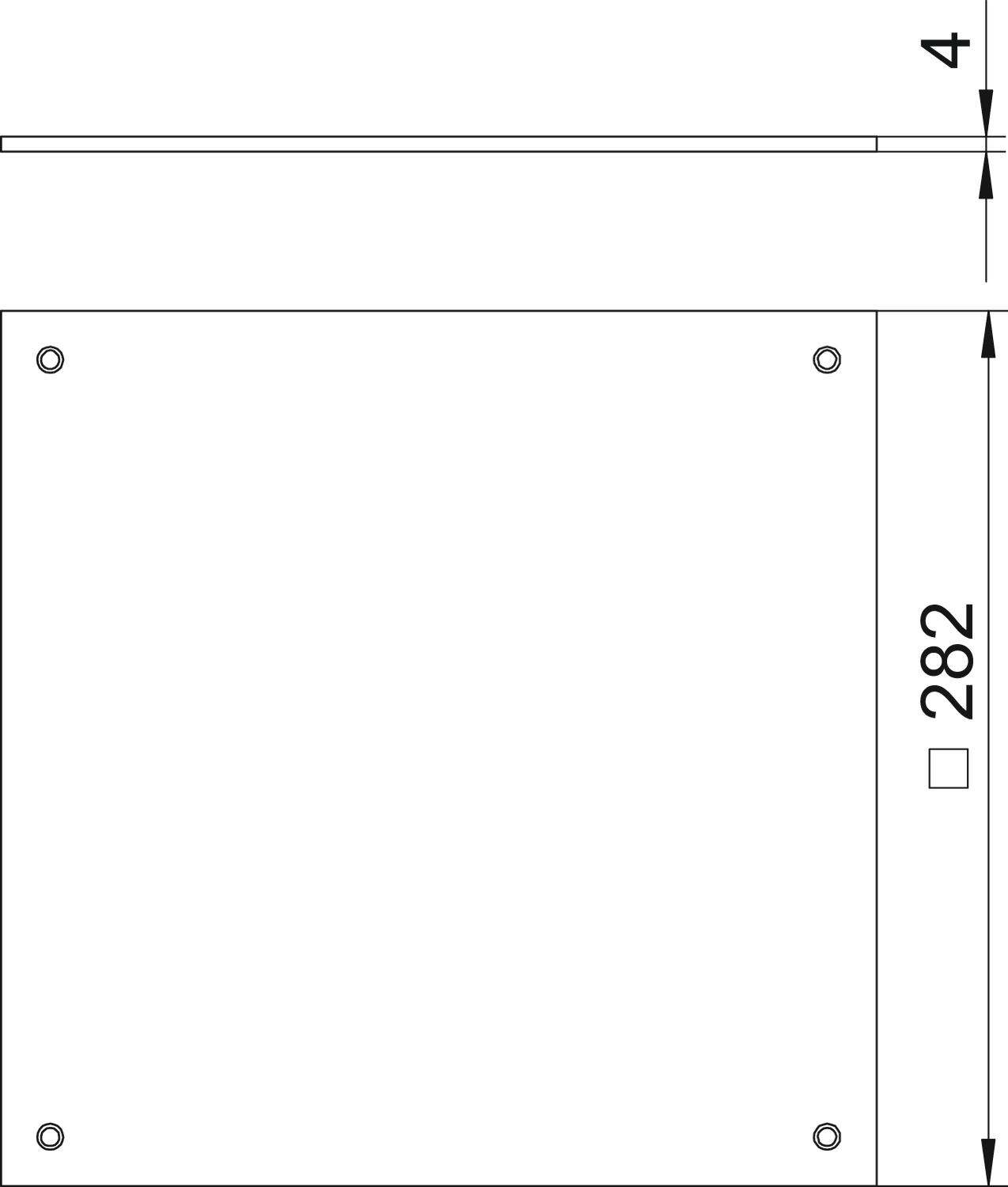

Dimension A 282 mm Length 282 mm Width 282 mm - All types
- Downloads
-
Data sheet DU 250-2 / 7400573 , 0.19MB , pdfDeclaration of conformity DU 250-2 / 7400573 , 0.15MB , pdfMounting instructions EÜK screed-covered duct system , 10.26MB , pdfMounting instructions Estrichüberdecktes Kanalsystem EÜK , 76.05MB , pdf
