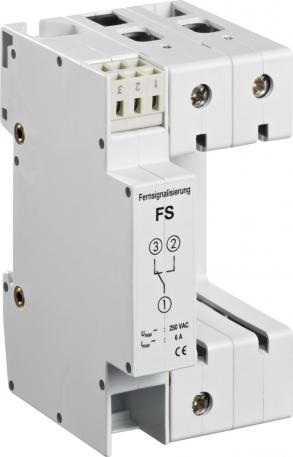

Base V20 and V25 2pole with remote signaling

Item no. 5096316 | EAN 4012195393375

Product description

Product description

Base

• Suitable for V 25-B+C or V 20-C
• With remote signalling and potential-free changeover contact for function monitoring
• Pre-mounted and ready for connection

Technical data

Technical data

Conductor cross-section, rigid (single-wire/multiwire), max.	35 mm²
Conductor cross-section, rigid (single-wire/multiwire), min.	2,5 mm²
Dimension	3-polig
Operating temperature, max.	80 °C
Operating temperature, min.	-40 °C

Pole version	2
Protection rating	IP20
Remote signalling	yes
Signalling on device	None
Version for	2-pole with RS; lower part

All types

All types

Types		Item no.	Quantity	SSU
V20-C U-2 FS		5096316	piece	1 piece
V20-C U-4 FS		5096332	piece	1 piece

Downloads

Data sheet V20-C U-2 FS / 5096316 , 0.24MB , pdf

Guide Lightning protection guide , 2.10MB , pdf

Brochure Lightning and surge protection for maximum safety , 0.45MB , pdf

Catalogue Transient and lightning protection systems , 2.10MB , pdf

Catalogue Überspannungsschutz , 28.42MB , pdf

Label approval UL certificate V20 , 0.30MB , pdf

Download

Selection aid Surge protection made easy – TBS selection aid , 2.00MB , pdf

Product graphic V20-C U-2 FS / 5096316, 64.11 kB, jpg

Scale drawing V20-C U-2 FS / 5096316, 70.68 kB, jpg
