Add-on tee 110 FT

Item no. / Types

Width

Product description

Product description

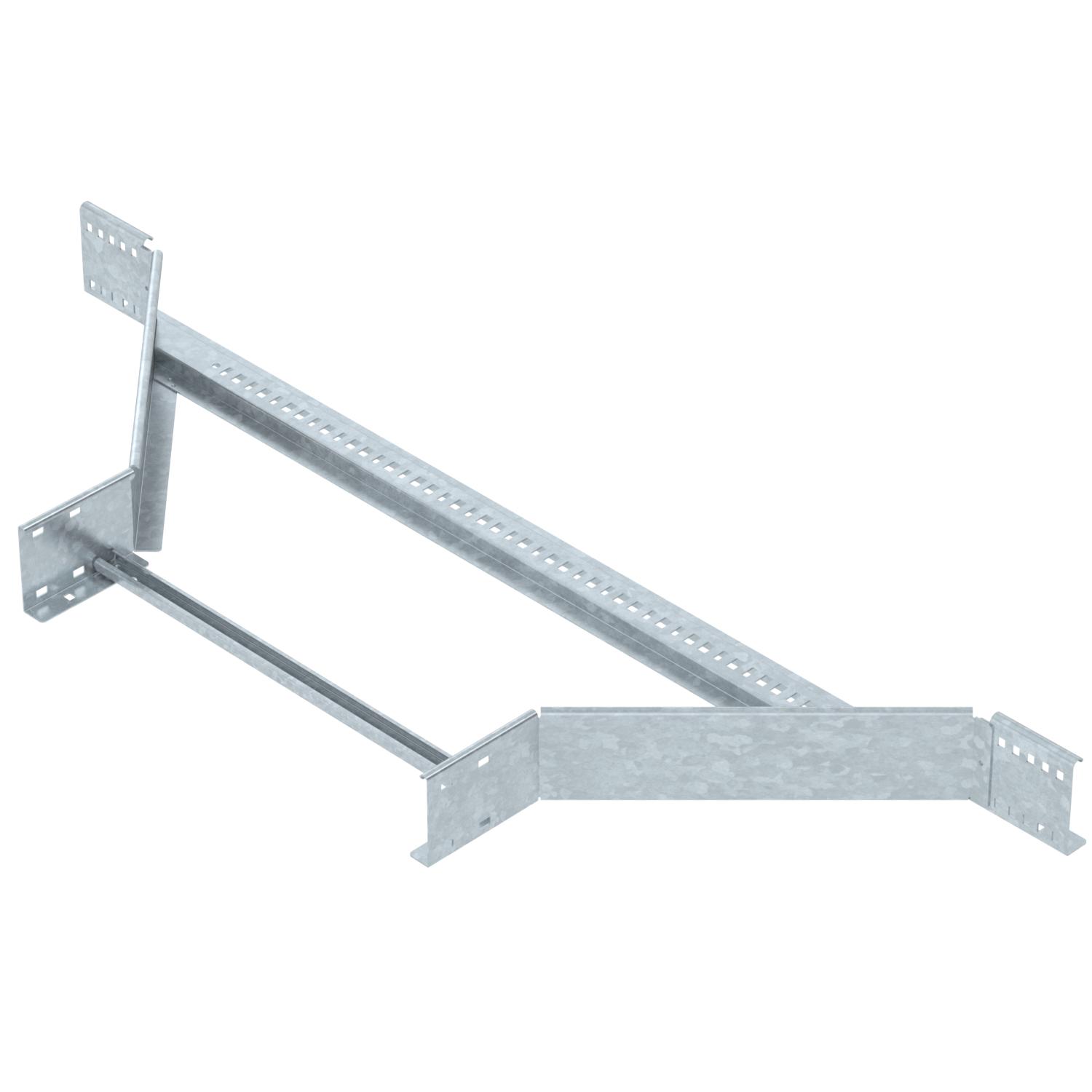

Add-on tee with welded rung for all cable ladder types of 110 mm side height.

Technical data

Colour	zinc
Connector version	Without connectors

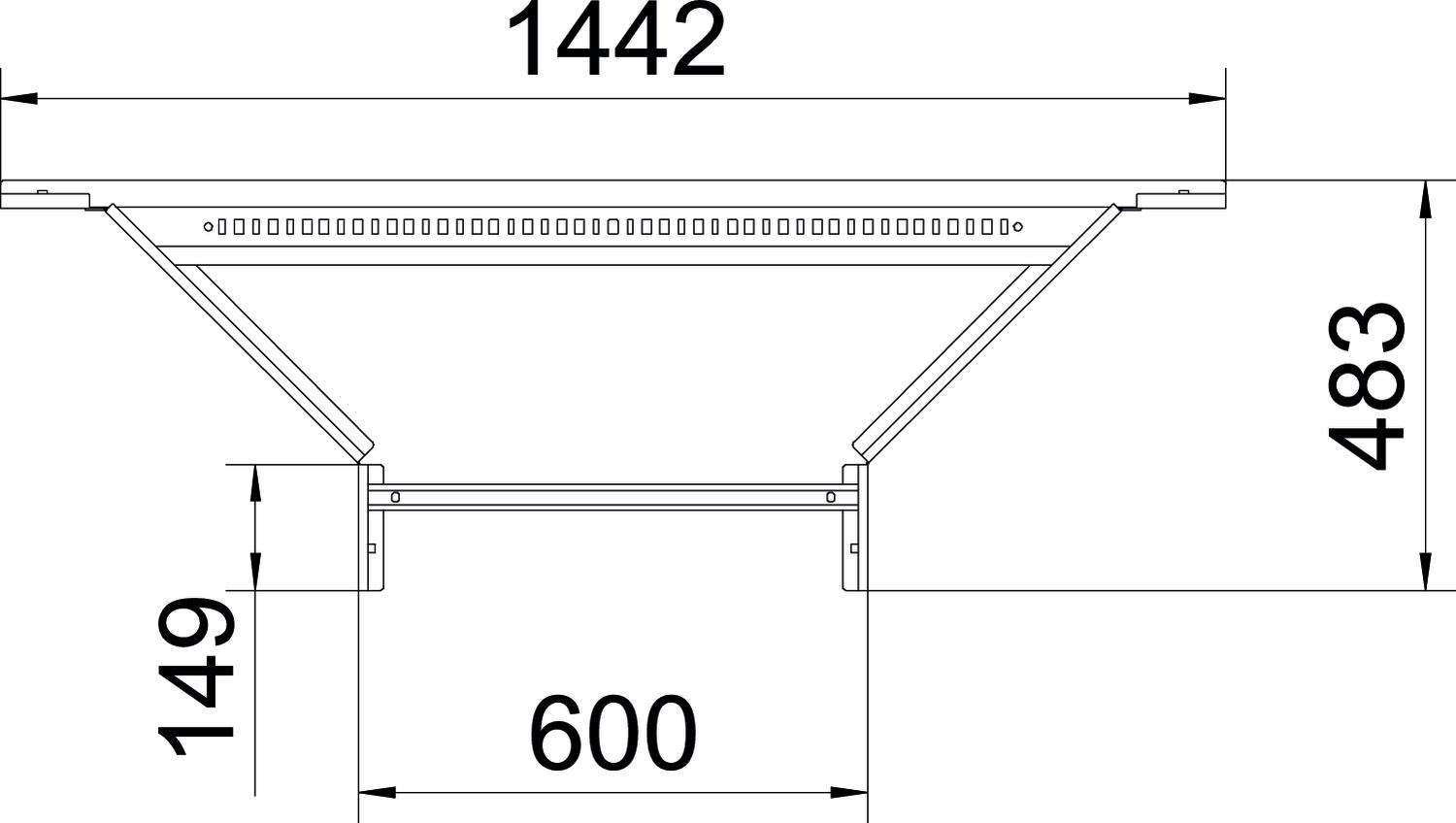

Dimension	110x600
Dimension B	600 mm
Dimension R	300 mm
Height	110 mm
Maintain electrical functions	no
Material	Steel

All types

All types

Types	Width	Item no.	Quantity	SSU
SLAA 1120 R3 FT	200 mm	6225950	piece	1 piece
SLAA 1130 R3 FT	300 mm	6225952	piece	1 piece
SLAA 1140 R3 FT	400 mm	6225954	piece	1 piece
SLAA 1145 R3 FT	450 mm	6225956	piece	1 piece
SLAA 1150 R3 FT	500 mm	6225958	piece	1 piece
SLAA 1160 R3 FT	600 mm	6225960	piece	1 piece
SLAA 1175 R3 FT	750 mm	6225962	piece	1 piece
SLAA 1180 R3 FT	800 mm	6225964	piece	1 piece
SLAA 1190 R3 FT	900 mm	6225966	piece	1 piece
SLAA 11100 R3 FT	1000 mm	6225968	piece	1 piece
SLAA 11120 R3 FT	1200 mm	6225970	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
Straight connector FT	LVG 110 FT	6216548	piece	10 piece

Downloads

Data sheet SLAA 1160 R3 FT / 6225960 , 0.21MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Welded cable ladder system , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity SLAA 1160 R3 FT / 6225960 , 0.10MB , pdf

Download

Mounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdf
