90° mesh cable tray bend FT

Item no. 6002335 | EAN 4012196407095

Item no. / Types

Width

Wire diameter

Maintain electrical functions	no

Product description

Product description

90° bend, horizontal, for all mesh cable trays of 105 mm side height.

Technical data

Technical data

Bend (angle)	90°
Colour	zinc
Connector version	Without connectors
Dimension	105x450
Dimension A	33 mm
Dimension B	456 mm
Dimension H	108 mm
Height	105 mm

Maintain electrical functions	no
Material	Steel
Rustproof steel, pickled	no
Surface	Hot-dip galvanised
Type	Horizontal bend
Width	450 mm
Wire diameter	4,8 mm

All types

All types

Types	Width	Wire diameter	Maintain electrical functions	Item no.	Quantity	SSU
GRB 90 110 FT	100 mm	3.9 mm	no	6002307	piece	1 piece
GRB 90 115 FT	150 mm	3.9 mm	no	6002311	piece	1 piece
GRB 90 120 FT	200 mm	4.8 mm	no	6002315	piece	1 piece
GRB 90 130 FT	300 mm	4.8 mm	no	6002323	piece	1 piece
GRB 90 140 FT	400 mm	4.8 mm	no	6002331	piece	1 piece
GRB 90 145 FT	450 mm	4.8 mm	no	6002335	piece	1 piece
GRB 90 150 FT	500 mm	4.8 mm	no	6002358	piece	1 piece
GRB 90 160 FT	600 mm	4.8 mm	no	6002366	piece	1 piece

Accessories

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Joint connector FT	GSV 34 FT	6016634	piece	20 piece

Downloads

Data sheet GRB 90 145 FT / 6002335 , 0.19MB , pdf

Guide KTS Kabeltragsysteme , 1.61MB , pdf

Brochure Mesh cable tray systems , 2.10MB , pdf

Catalogue Cable support systems , 2.10MB , pdf

Catalogue Planning aids and basic knowledge, cable support systems , 2.10MB , pdf

Catalogue Kabeltragsysteme , 45.23MB , pdf

EU declaration of conformity GRB 90 145 FT / 6002335 , 0.10MB , pdf

Mounting instructions General information on the mounting , 2.61MB , pdf

Mounting instructions Mounting instructions, mesh cable tray systems , 9.52MB , pdf

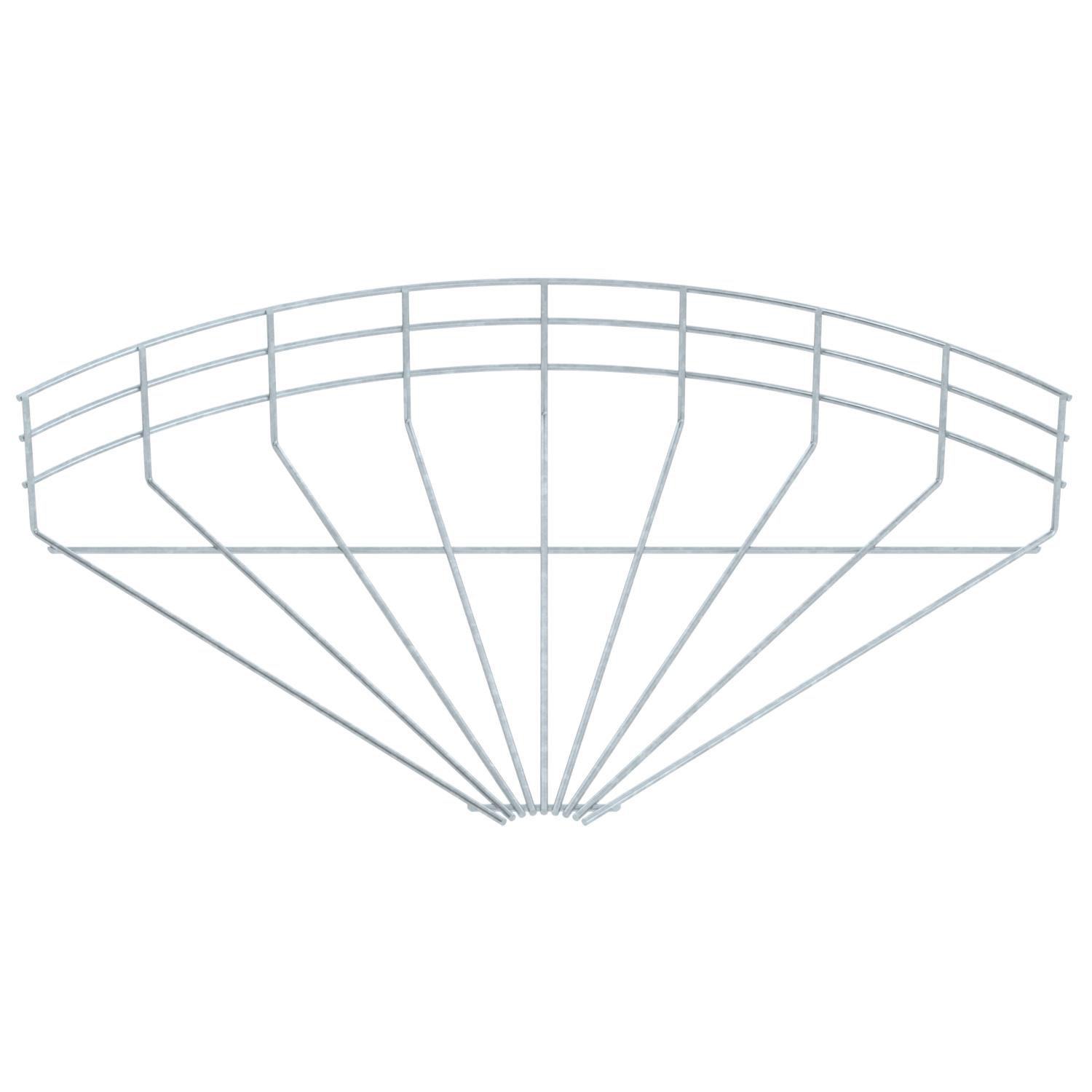

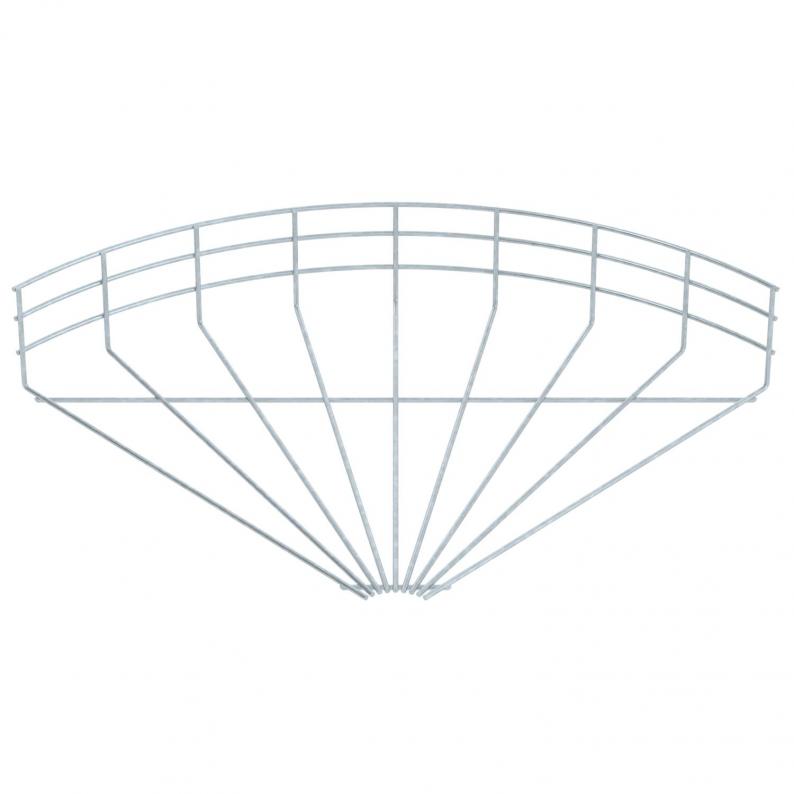

Product graphic GRB 90 145 FT / 6002335, 66.33 kB, jpg

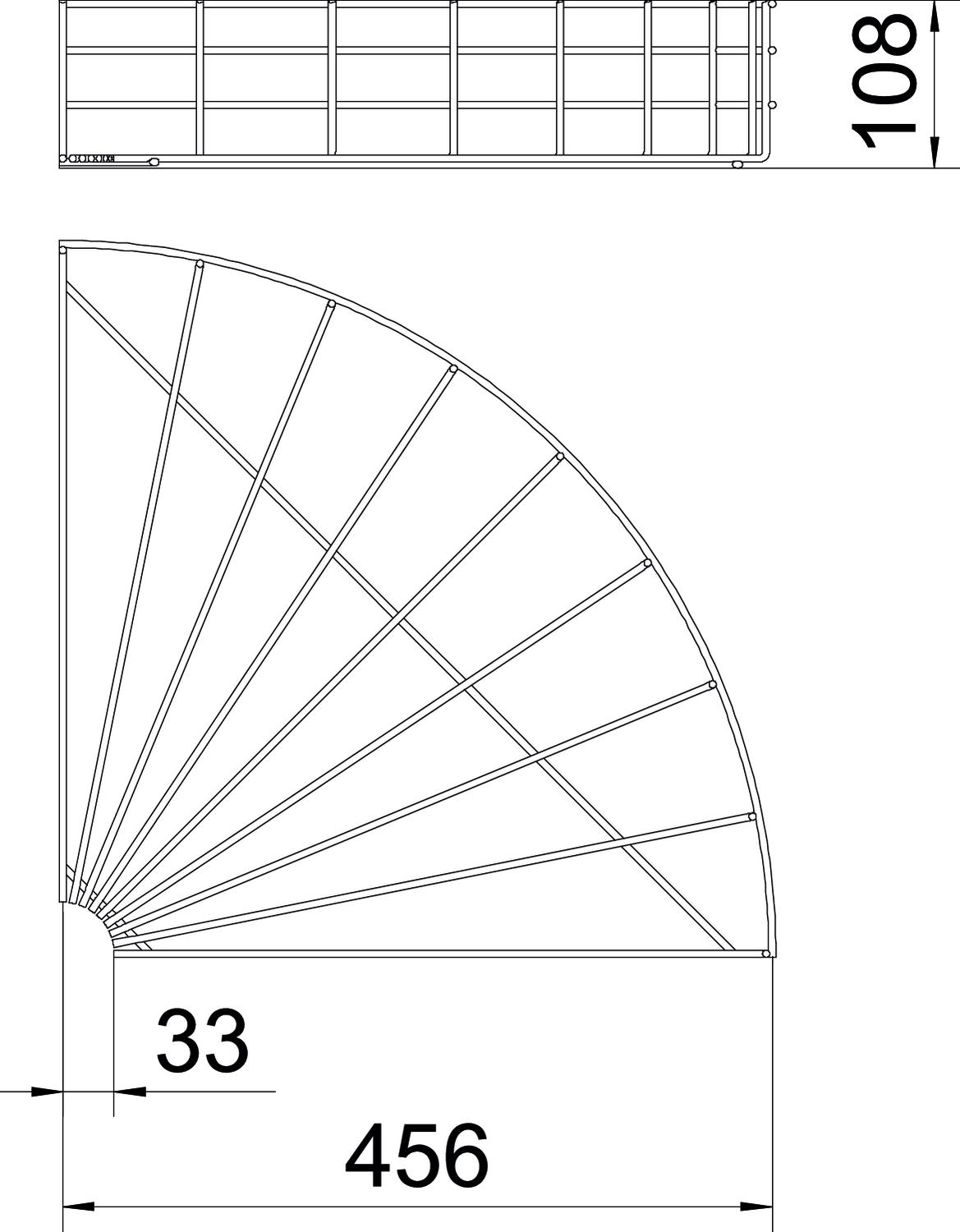

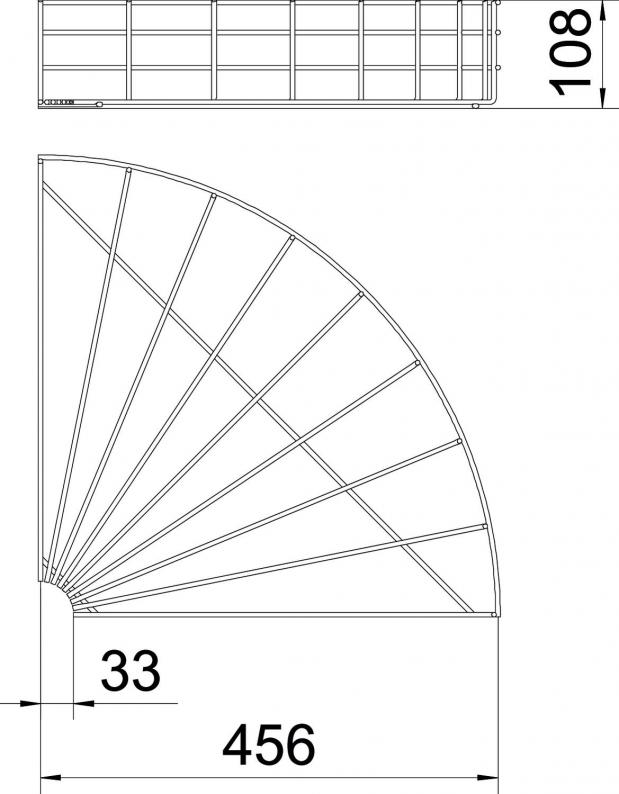

Scale drawing GRB 90 145 FT / 6002335, 120.52 kB, jpg
